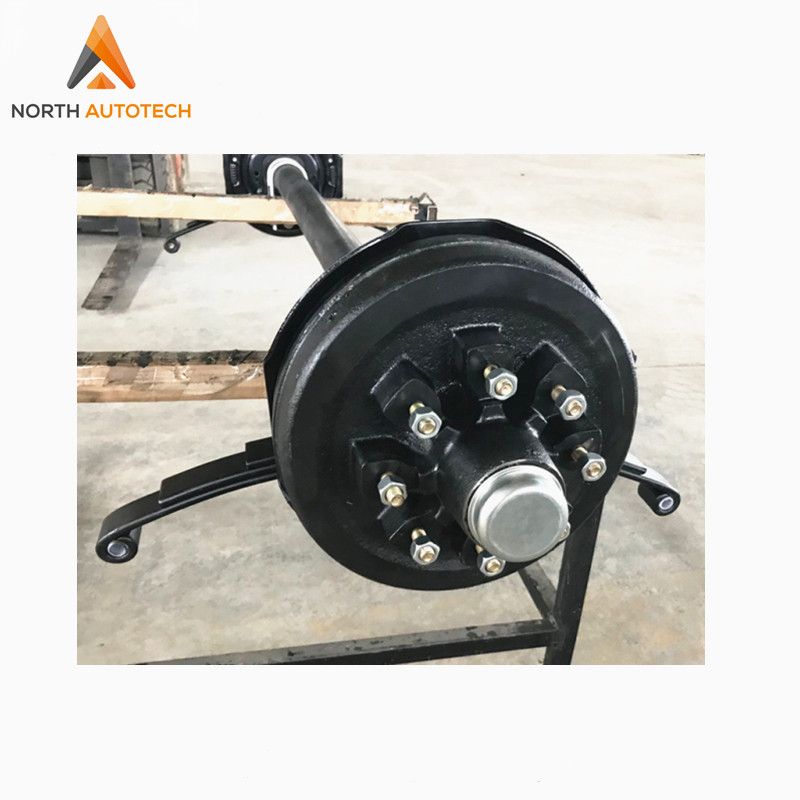

Trailer Brake Assembly

ITEMS	VALUE
Size	9''
Loading	2700lbs
Color	Black, Silver, Custom Color
Finish	Paingting or galvanized

ALL OTHER TYPES

Brake type	Wideness	Thickness	Voltage	Cylinder	Max. Load
Electric Brake	7	1 1/4	12		2,000 lb
Electric Brake	10	2 1/4	12		3,500 lb
Electric Brake	11	2	12		6,000 lb
Electric Brake	12	2	12		7,000 lb
Electric Brake	10	1 3/4	12		3,500 lb
Electric Brake	10	2 1/4	12		4,400 lb
Electric Brake self-adjusting	10	2 1/4	12		3,500 lb
Electric Brake self-adjusting	11	2	12		6,000 lb
Electric Brake self-adjusting	12	2	12		7,000 lb
Electric Brake self-adjusting	10	1 3/4	12		3,500 lb
Electric Brake self-adjusting	10	2 1/4	12		4,400 lb
Electric Brake self-adjusting w/parking	10	2 1/4	12		3,500 lb
Electric Brake self-adjusting w/parking	12	2	12		7,000 lb
Electric Brake with Parking lever	7	1 1/4	12		2,000 lb
Electric Brake with Parking lever	10	2 1/4	12		3,500 lb
Electric Brake with Parking lever	12	2	12		7,000 lb
Electric Brake with Parking lever	10	1 3/4	12		3,500 lb
Electric Brake with Parking lever	10	2 1/4	12		4,400 lb
Hydraulic Brake	9	1 3/4		Duo-servo	3,000 lb
Hydraulic Brake	10	2 1/4		Uni-servo	3,500 lb
Hydraulic Brake	12	2		Uni-servo	7,000 lb
Hydraulic Brake free-backing	10	2 1/4		Uni-servo	3,500 lb
Hydraulic Brake free-backing	12	2		Uni-servo	7,000 lb
Hydraulic Brake free-backing w/parking	10	2 1/4		Uni-servo	3,500 lb
Hydraulic Brake free-backing w/parking	12	2		Uni-servo	7,000 lb
Hydraulic Brake with Parking lever	10	2 1/4		Uni-servo	3,500 lb
Hydraulic Brake with Parking lever	12	2		Uni-servo	7,000 lb
Heavy duty Electric Brake	12 1/4	3 3/8	12		8,000 lb
Heavy duty Electric Brake	12 1/4	3 3/8	12		10,000 lb
Heavy duty Electric Brake	12 1/4	5	12		12,000 lb
Heavy duty Electric Brake w/Parking	12 1/4	3 3/8	12		8,000 lb
Heavy duty Electric Brake w/Parking	12 1/4	3 3/8	12		10,000 lb
Heavy duty Hydraulic Brake	12 1/4	3 3/8		Duo-servo	10,000 lb

Description:

PRODUCT INTRODUCTION

How Hydraulic Trailer Brakes Work
Hydraulic Surge Brakes - The most common type in the U.S., these brakes are self-contained and activate when the tow vehicle slows down, causing a hydraulic surge actuator (coupler) to engage the trailer brakes.
No Electrical Connection Needed - Unlike electric brakes, surge brakes operate purely through hydraulic pressure.
Automatic Braking Force - The harder the tow vehicle brakes, the more pressure is applied to the trailer brakes.

Advantages of Hydraulic Brakes
No Brake Controller Needed - Unlike electric brakes, Hydraulic brakes don't require an electronic brake controller in the tow vehicle.

Smooth, Proportional Braking - Braking force matches the tow vehicle's deceleration.

Good for Wet Conditions - Hydraulic systems are less prone to corrosion than electric brakes (important for boat trailers).
