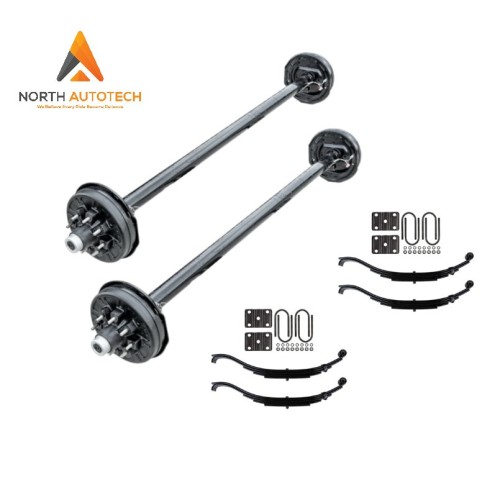

7000lbs Light Duty Trailer Axle

item	7000 lbs Electric Brake axle with 8 lug for trailer use
Use	Trailer
Axle material	(Galv/Marine Axle)
OE NO.	AC098 Serials
Max Payload	7000 lbs
Size	Tube:3" round tube with 12*2 " brake, Bolt Pattern Options
Size	:8 on 6 1/2" (9/16" Studs Standard or optional 5/8")
Place of Origin	China
	Shandong
Brand Name	BZ
Brake	12*2" electric /Hydraulic/Hyd feebacking Corrosion Resistant (Galv/Marine Axle)
Beam option	Galvanized Option (Marine) , Corrosion Resistant Hubs
Beam option	• V-Bend Beam Option (Marine

Description:

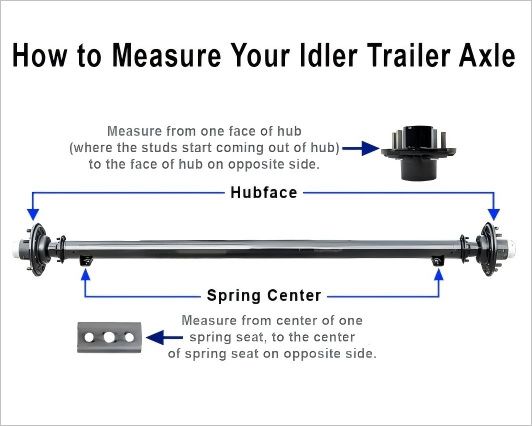

Measurement Method

HUB FACE
(1)--Prepare the axle: Remove the wheels and tires from the axle to expose the hub faces.
(2)--Locate the hub face: The hub face is the flat surface on the hub where the wheel sits flush against it.
(3)--Use a straight edge: Place a straight edge against the hub face on one side of the axle.
(4)--Measure across the axle: Place the end of your tape measure against the straight edge and extend it across the axle to the corresponding hub face on the other side.
(5)--Read the measurement: The measurement on your tape measure is the hub face measurement.

2. SPRING CENTER
(1)--Locate the spring pads: Identify the pads on the axle where the leaf springs are mounted.
(2)--Find the center: For each spring pad, find the center point of the bolt hole.
(3)--Measure: Use a tape measure to measure from the center of the bolt hole on one spring pad to the center of the bolt hole on the opposite spring pad.
(4)--Record the measurement: This measurement is the spring center of your trailer axle.
