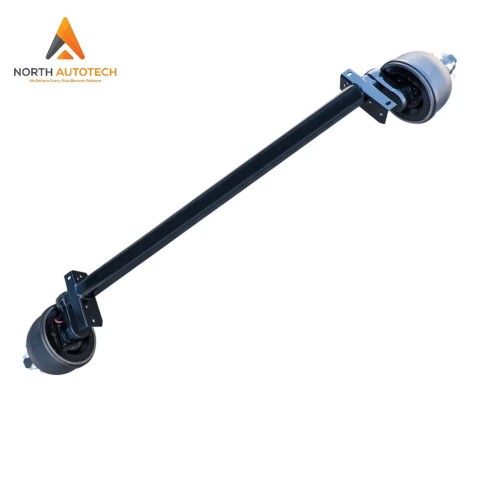

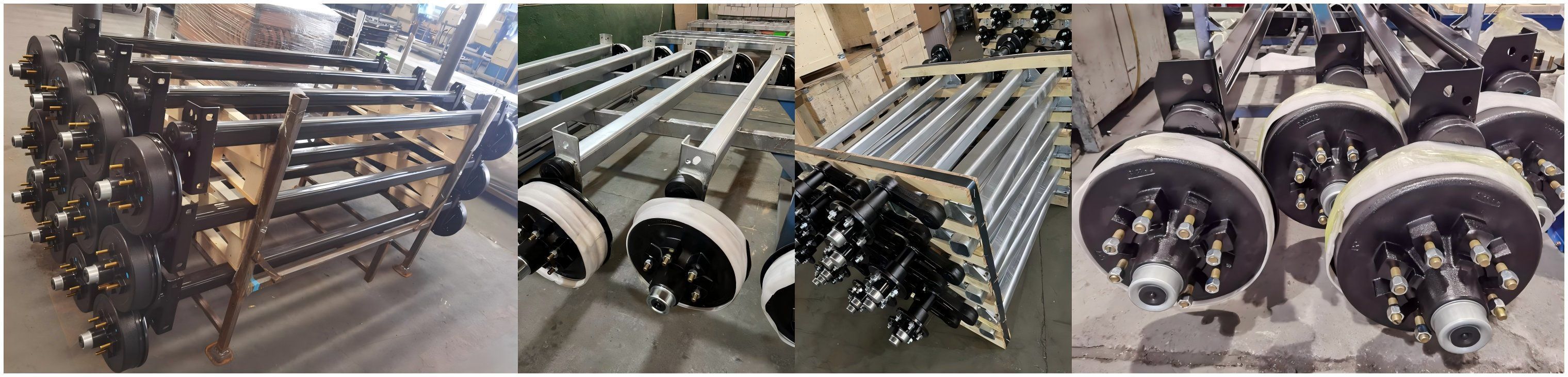

Torsion Axle

ITEMS VALUE
Tube 3''

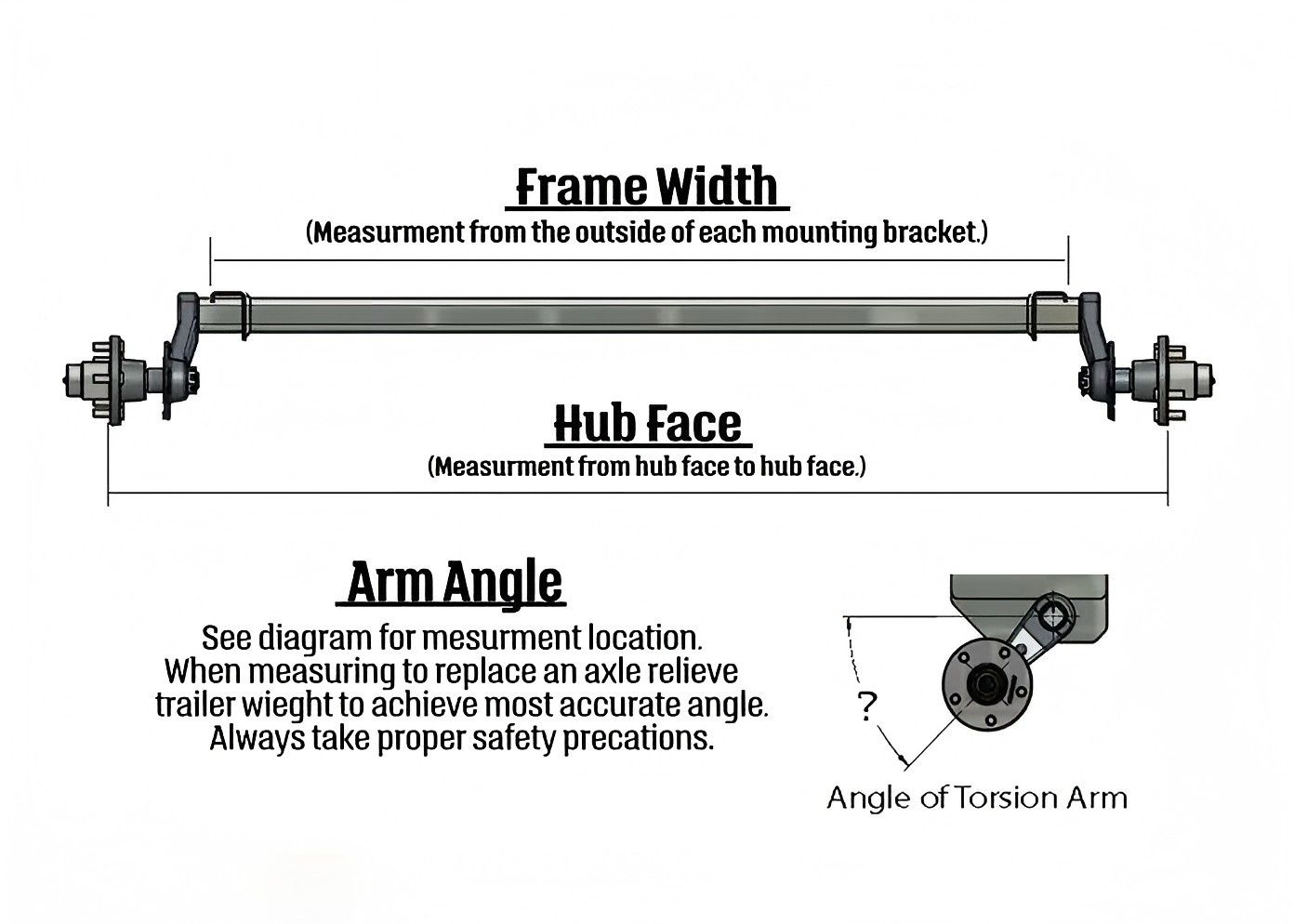

Hub face to hub face 73''
Bolt 5x4.5'' or 5x5''
Stud 1/2''
Cap Grease with mental cap
Angle Degree 10° Down  22.5°Down  45°Down
0°  10°Up  10°Up

Description:

The rubber torsion axle consists of three primary components: a rubber cartridge, support bushing and spindle arm. The cartridge is comprised of strong proprietary formula rubber bonded to a steel shaft. The bonding process used results in a bond strength exceeding the strength capabilities of the associated steel parts. Unlike the solutions used by competition, the system operates in shear rather than compression providing more angular compliance, a better damping effect and a smoother ride. The nylon support bushing maintains camber and contributes additional damping control. The spindle arm is a one piece forging with a
splined joint connecting it to the cartridge. The splines, at six degree intervals, make an exceptionally strong connection while providing a range of starting angles. Components are available in four sizes: 2000, 3500, 5200, and 7000 lbs 8000lbs axle capacities.
